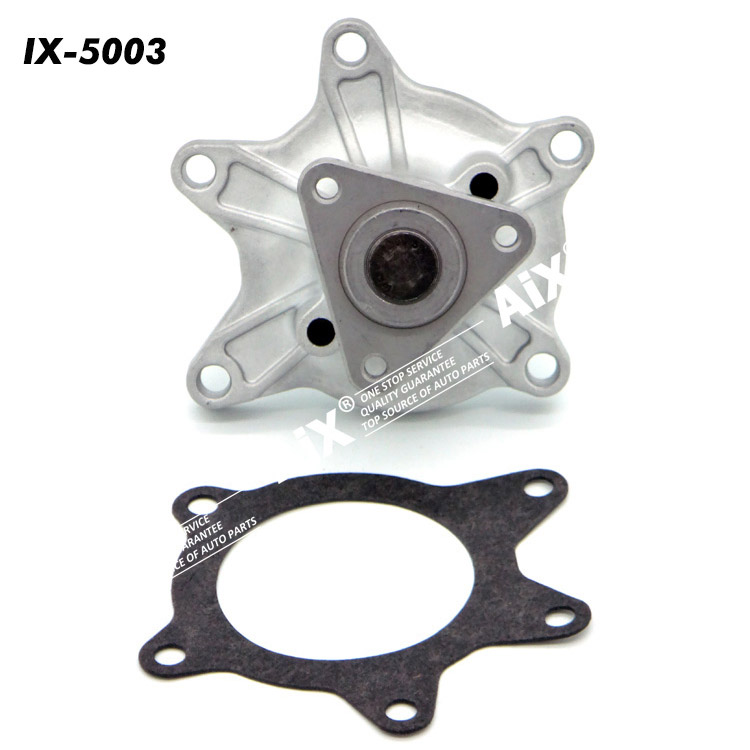

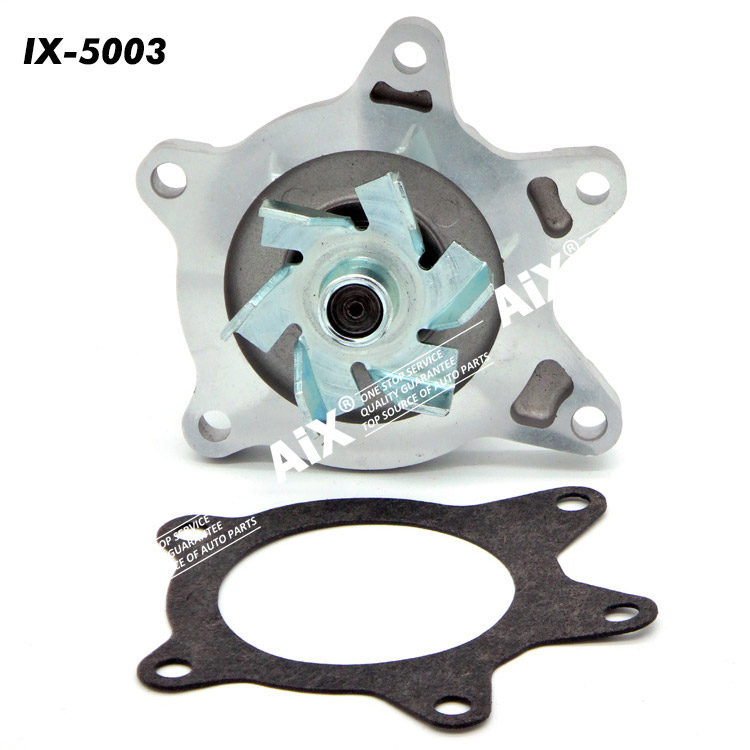

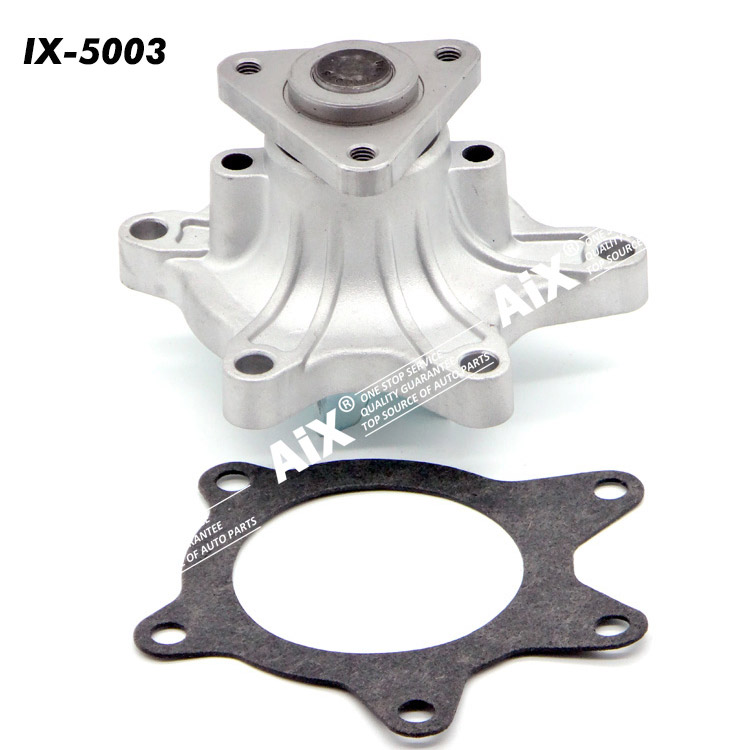

IX-5003_WPT-111V Water Pump

Interchange Part Numbers of IX-5003_WPT-111V Water Pump

AiX: IX-5003
AISIN: WPT-111V
TOYOTA: 16100-29205
TOYOTA: 16100-29156
TOYOTA: 16100-29155
TOYOTA: 16100-29157
TOYOTA: 16100-29206

Applications of IX-5003_WPT-111V Water Pump

2003-2005 TOYOTA  ECHO Hatchback (NCP13_, NCP12_) 1.5 VVTi Hatchback
2003-2009 TOYOTA  PRIUS Hatchback (NHW20_) 1.5 Hatchback
2000-2004 TOYOTA  PRIUS Saloon (NHW11_) 1.5 Hybrid Saloon
2010- TOYOTA  VERSO S (NLP12_, NCP12_, NSP12_) 1.5 MPV
2010- TOYOTA  YARIS (NHP13_, NSP13_, NCP13_, KSP13_, NLP13_) 1.3 VVT-i Hatchback
1999-2005 TOYOTA  YARIS (SCP1_, NLP1_, NCP1_) 1.3 16V Hatchback
2001-2005 TOYOTA  YARIS (SCP1_, NLP1_, NCP1_) 1.4 D-4D Hatchback
2003-2005 TOYOTA  YARIS (SCP1_, NLP1_, NCP1_) 1.5 TS Hatchback
2001-2005 TOYOTA  YARIS (SCP1_, NLP1_, NCP1_) 1.5 VVT-i TS Hatchback
1999-2002 TOYOTA  YARIS VERSO (_NLP2_, _NCP2_) 1.3 (NCP22) MPV
2002-2005 TOYOTA  YARIS VERSO (_NLP2_, _NCP2_) 1.3 (NCP22) MPV
2001-2005 TOYOTA  YARIS VERSO (_NLP2_, _NCP2_) 1.4 D-4D (NLP22) MPV
2003-2005 TOYOTA  YARIS VERSO (_NLP2_, _NCP2_) 1.5 (NCP21) MPV
2000-2005 TOYOTA  YARIS VERSO (_NLP2_, _NCP2_) 1.5 (NCP21) MPV
2000-2005 TOYOTA  YARIS VERSO (_NLP2_, _NCP2_) 1.5 4WD MPV

Detailed Info of IX-5003_WPT-111V Water Pump

Introduction of Automotive Pump

In the cylinder block of the automobile engine, there is a plurality of water passages for circulating cooling water, and a radiator (commonly called a water tank) placed at the front of the automobile is connected through a water pipe to form a large water circulation system. Besides, at the upper outlet of the engine, a water pump is installed, which is driven by the fan skin to pump out the heat in the engine block water passage and pump the cold water. There is also a thermostat next to the water pump. When the automotive is just starting (cold car), it does not open, so that the cooling water does not pass through the water tank and only circulates in the engine (commonly called small cycle). When the temperature of the engine reaches 95 degrees or more, it can be turned on. At this time, the hot water in the engine is pumped into the water tank, and when the cold wind blows through the water tank, the heat will be taken away.

Nowadays, centrifugal water pumps are widely used in automotive engines, which basic structure consists of the pump housing, connecting plate or pulley, water pump shaft and bearing or shaft bearing, water pump impeller and water sealing device. All of these are the main component of the car.
